Real-time automatic measuring device for sand drain method and sand compaction pile method for high-quality construction (NEW SD real-time measuring device, NEW SCP real-time measuring device)

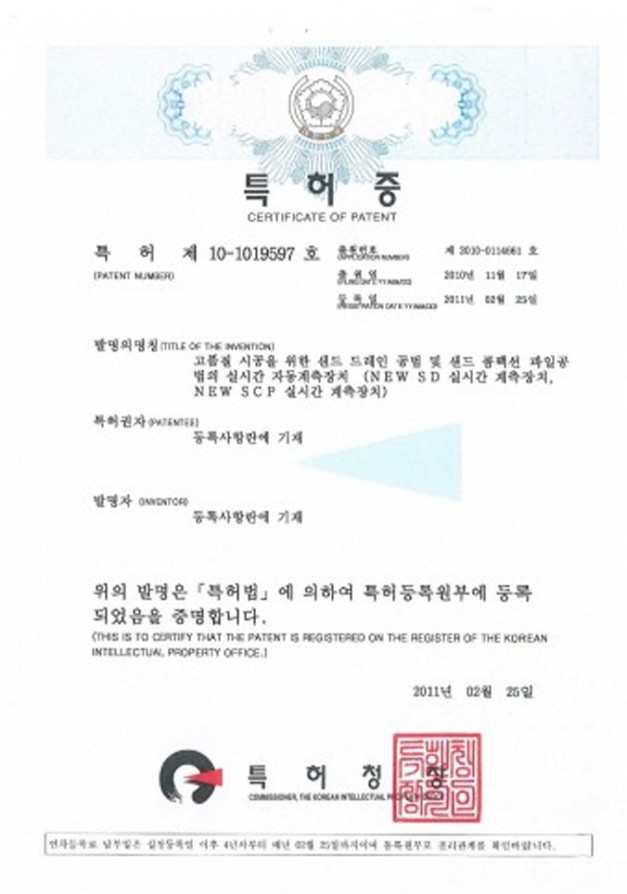

| Patents No. | 10-1019597 |
|---|
| Application date | November 17, 2010 |
| Date of issue | February 25, 2011 |
| Issuing agency | Commissioner of the Korean Intellectual Property Office |
본문
Detail
The present invention provides a real-time automatic measuring device for sand drain and sand compaction pile construction for high-quality construction, which is composed of a leader and a vibration hammer installed at the front of an infinitely moving tracked vehicle, and a casing, a verticality sensor, a slope depth sensor, a penetration depth sensor, a displacement sensor, and a control unit.
This device automatically records and displays the measurement data in real time as a trajectory and a schematic diagram, thereby ensuring visual verification of construction work and reliability of construction quality, and allows workers or a supervision company to visually analyze data that changes in real time to improve workability. In particular, it can accurately analyze the measurement data according to the characteristics of soft ground to prevent the cause of poor construction in advance.
